Driver Side Instrument Panel Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

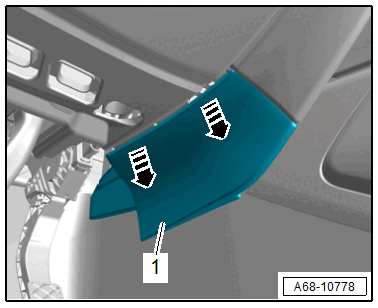

-- Unclip the inner driver side cover -1- from the instrument panel cover using the :3409 -arrows-.
-- Equipped on some models: Remove the footwell lamp. Refer to the appropriate Service Information .
-- Remove the side bolt -1-.
- Vehicles without a storage compartment: one bolt
- Versions with a storage compartment: three bolts
-- Remove the lower bolts -3-.
-- Unclip the driver side instrument panel cover -2- from the instrument panel by hand -arrows-.
-- Remove the driver side instrument panel cover from the mount -4-.
-- Equipment version: disconnect the connectors for the parking aid and emergency call speaker.
-- Disengage the diagnostic connection on the instrument panel cover.
