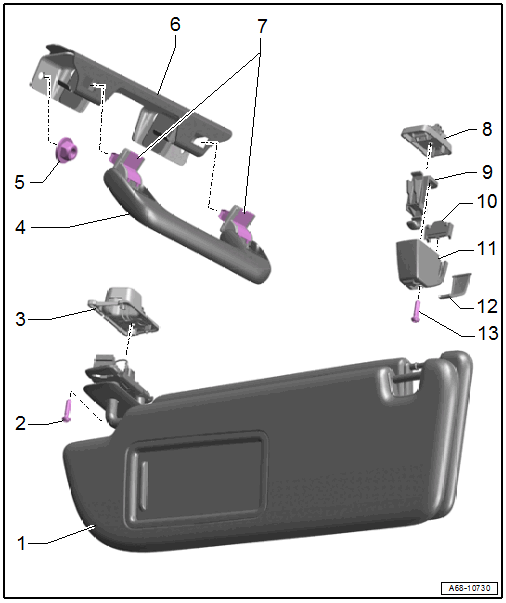

Overview - Sun Visors
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Sun Visor
- Removing and Installing. Refer to SUN VISOR, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Mounting for Sun Visor Mount
- Clip into the opening in the body
- Roof Grab Handle
- Quantity: 2 each
- Press until it engages completely
- Removing and Installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
- Nut
- Quantity: 2 each
- 10 Nm
- Roof Grab Handle Bracket
- Removing and Installing. Refer to ROOF GRAB HANDLE BRACKET, REMOVING AND INSTALLING .
- Expanding Caps
- Press until it engages completely
- Center Support Mount
- Clip into the opening in the body
- Sun Visor Center Support
- Removing and Installing. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
- Plug
- Inserted into the cap
- Center bearing cover
- Clipped into the sun visor center support
- Press until it engages completely
- Cap
- Clipped into the sun visor center support
- Press until it engages completely
- Bolt
- 2.5 Nm
