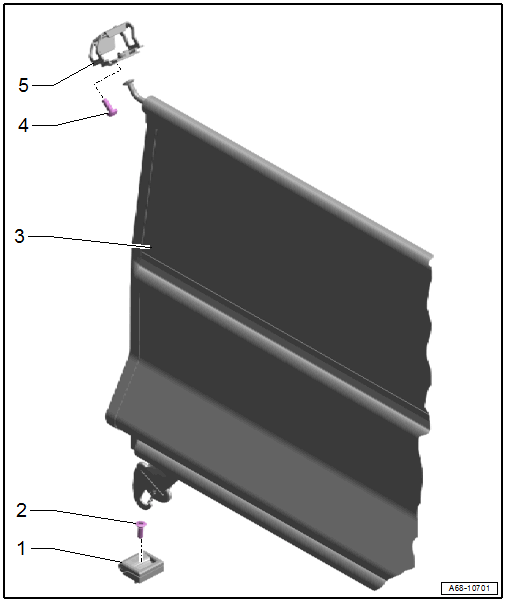

Overview - Screen Separator
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Tie Down
- Quantity: 2 each
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2 each
- Tightening specification -item 4- OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM
- Screen Separator
- Bolt
- Quantity: 2 each
- 9 Nm
- Mount
- For the screen separator
- Quantity: 2 each
- Position the securing tab on the mounting eye in the opening in the body
- Removing and Installing. Refer to SCREEN SEPARATOR MOUNT, REMOVING AND INSTALLING .
