Front Ashtray Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

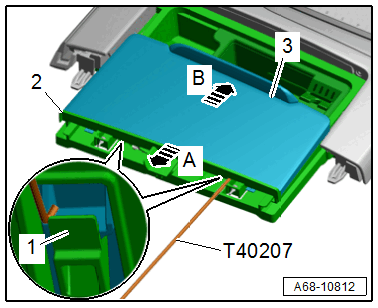

-- Open the cover -2- and slide forward -arrow A-.
-- Using the :T40207 release the catches -1- on the bottom and at the same time push the trim -3- in the direction of the -arrow B-.
-- Remove the trim from the cover.
