Center Console Rear Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats all the way forward.

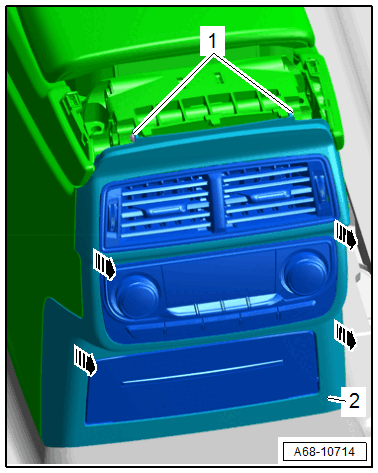

-- Unclip the cover -1- with the front :T10383/1 -arrows- and disengage rearward.
-- Remove the bolts -1-.
-- Using the :T10383/1 , unclip the trim -2- at the sides starting at the top from the center console -arrows-.
-- Remove the trim from the center console toward the rear.
-- Disconnect the connectors.
