Center Console Insert, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Shift the selector level into "P" position.
-- Remove the selector lever handle. Refer to the appropriate Service Information .

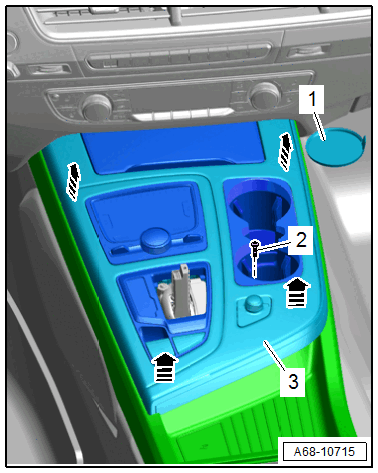

-- Remove the liner mat -1- and remove the bolt -2- behind it.
-- Starting at the back, reach with the hand under the center console insert and carefully remove it upward from the center console -arrows-.
-- Carefully pull the center console insert -3- out toward the rear, disconnect the connectors and remove it.
