Special Tools

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Backrest Panel Tool:3370

Fig 1: Backrest Panel Tool (3370)
Courtesy of AUDI
Pry Lever:80-200

Fig 2: Identifying Pry Lever
Courtesy of AUDI
Turbocharger Tester Kit:VAG1397A

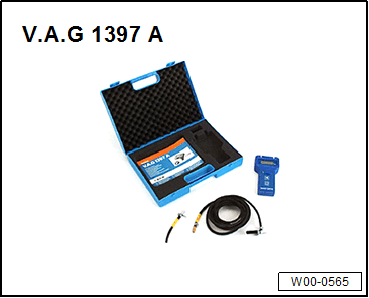

Fig 3: Identifying Turbocharger Tester V. A. G 1397 A
Courtesy of AUDI
Pop Rivet Pliers:VAG1753B

Fig 4: Pop Rivet Pliers
Courtesy of AUDI
Pop Rivet Nut Pliers:VAS5073A

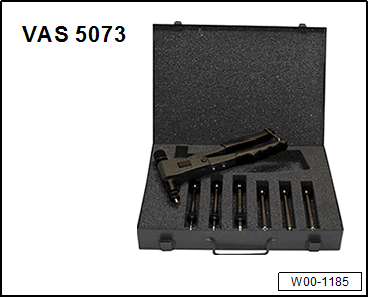

Fig 5: Identifying Internally Threaded Pop Rivet Pliers VAS 5073
Courtesy of AUDI
Pneumatic Repair Set:VAS6618 A
Hose Cutting Pliers:VAS6228

Fig 6: Air Hose Pliers VAS 6228
Courtesy of AUDI
Airbag Lockout Adapter:VAS6282

Fig 7: Airbag Lockout
Courtesy of AUDI
Universal Vehicle Protector:VAS871001 , not illustrated
Engine and Gearbox Bracket:VAS6095A

Fig 8: Engine And Transmission Holder
Courtesy of AUDI
Engine/Transmission Holder - Seat Repair Fixture:VAS6136

Fig 9: Engine/Transmission Holder
Courtesy of AUDI
Airbag Lockout Adapter:VAS6282

Fig 10: Airbag Lockout
Courtesy of AUDI
Universal Vehicle Protector:VAS871001
Vehicle Diagnostic Tester
Trim Removal Wedge:3409

Fig 11: Identifying Trim Removal Wedge
Courtesy of AUDI
Assembly Tool:3399

Fig 12: Assembly Tool 3399
Courtesy of AUDI
Mini-grinder, commercially available
Protective Eyewear
Hand drill
Protective Eyewear
