Tunnel-Side Seat Frame Trim Panel, Removing And Installing, Third Row: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the third row cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, THIRD ROW SEAT PAN .

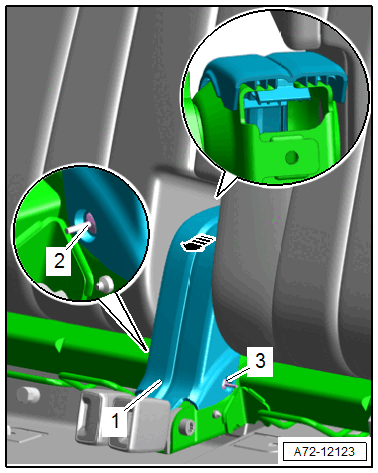

-- Remove the expanding clips -2, 3-, and disengage the upper trim panel -1- the seat frame -arrow-.
-- Disengage the lower trim panel on the seat belt latch and remove it.
