Tunnel-Side Hinge Trim Panel, Removing And Installing, Seat High, Outer Second Row: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

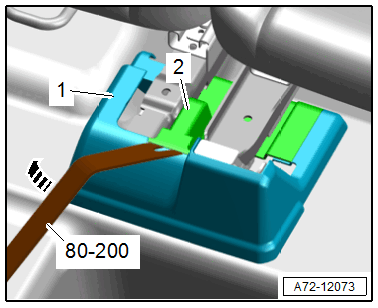

-- Using the :80-200 , remove the inner piece -2- of the trim panel from the outer piece -1- -arrow-.

-- Fold the outer seat forward.

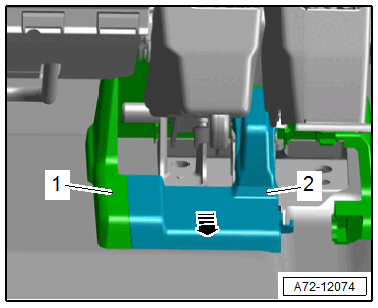

-- Remove the inner piece -2- of the trim panel in the direction of the -arrow- from the outer piece -1-.

Courtesy of AUDI
