Seat Folding Release Handle, Removing And Installing, Seat High, Outer Second Row: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the backrest forward.

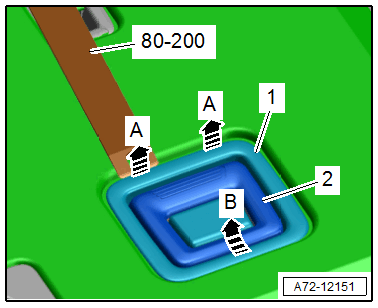

-- Release the catches using the :80-200 -A arrows- and pry the cover -1- upward from the backrest.
-- Pull the release handle -2- at the same time and disengage the rear cover on the backrest -arrow B-.
-- Disconnect the inner and outer shells for the release handle -1- using the :80-200 -arrow-.
-- Remove the inner and outer release handle shell from the metal bracket.
