Seat Adjustment Control Module, Removing And Installing, Third Row: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Remove the luggage compartment floor bracket. Refer to LUGGAGE COMPARTMENT CARPET BRACKET, REMOVING AND INSTALLING .

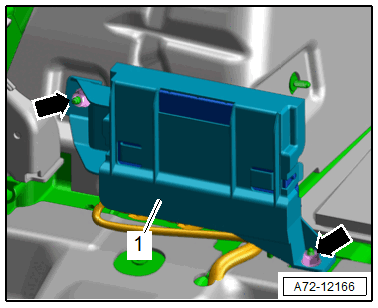

-- Remove the nuts -arrows-.
-- Disengage the bracket -1- with the control module and free up the wiring harness.

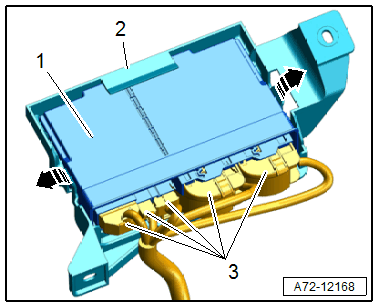

-- Open the tabs -arrows-.
-- Remove the control module -1- from the bracket -2-.
-- Release the connector safety catch and disconnect the connectors -3-.
