Rear Seat Backrest Locking Mechanism Handle, Removing And Installing, Outer Second Row Seat: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the seat forward.

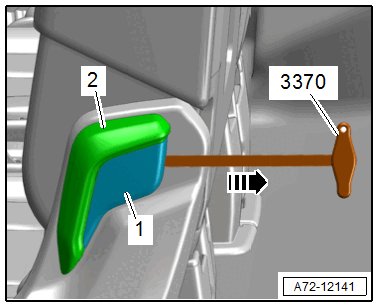

-- Fix the : 3370 on the trim -1- for the rear seat backrest locking mechanism -2- as shown.
-- Remove the trim in the direction of the -arrow-.

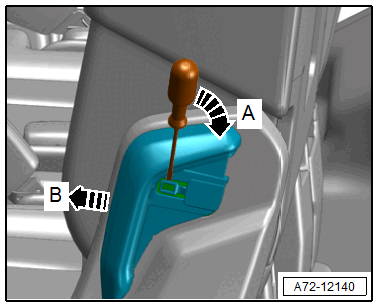

-- Carefully lift up the fastener using a small screwdriver -A arrow-.
-- At the same time, remove the handle from the shaft -arrow B-.
