Hinge Trim Panel On Side Sill Side, Removing And Installing, Seat High, Outer Second Row: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

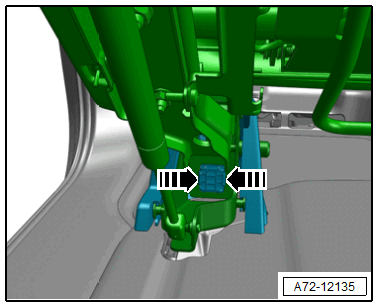

GWWA72-12135Courtesy of AUDI

-- Fold the outer seat forward.

-- Release the hooks -arrows- and remove the outer trim panel forward.
