Backrest Adjustment Stop Switch, Removing And Installing, Third Row: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Remove the third row seat. Refer to THIRD ROW SEAT, REMOVING AND INSTALLING .

-- If the backrest is folded in, connect the backrest adjustment motor to an external power source and fold the backrest upright. Refer to the appropriate Wiring Diagram.

-- Remove the cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, THIRD ROW BACKREST .

-- Stop switch on side sill side: remove the backrest adjustment motor. Refer to BACKREST ADJUSTMENT MOTOR, REMOVING AND INSTALLING, THIRD ROW .

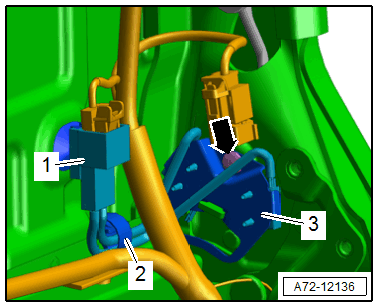

-- Press the release to disconnect the connector -1- and free it up.

-- Remove the cable bracket -2-.

CAUTION:

Risk of injury due to flying metal shavings.

Irritation and injury to skin and eyes possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Drill out the rivet -arrow-.

-- Remove the backrest adjustment stop switch -3- from the backrest frame.
