Backrest Adjustment Locking Latch Motor, Removing And Installing, Third Row: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the third row seat. Refer to THIRD ROW SEAT, REMOVING AND INSTALLING .
-- If the backrest is folded in, connect the backrest adjustment motor to an external power source and fold the backrest upright. Refer to the appropriate Wiring Diagram.
-- Remove the cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, THIRD ROW BACKREST .

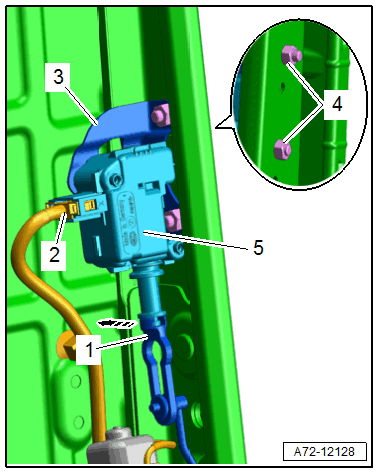

-- Unclip the guide -1- from the backrest adjustment locking latch motor -arrow-.
-- Press the release and disconnect the connector -2-.
-- Remove the nuts -4-.
-- Remove the backrest adjustment locking latch motor -5- with the bracket -3- from the backrest frame.
