Rear Seat Backrest Locking Mechanism, Removing And Installing, Outer Second Row Seat: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the backrest forward.
-- Seat High: fold the seat forward.
-- Remove the tunnel-side seat side trim. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .

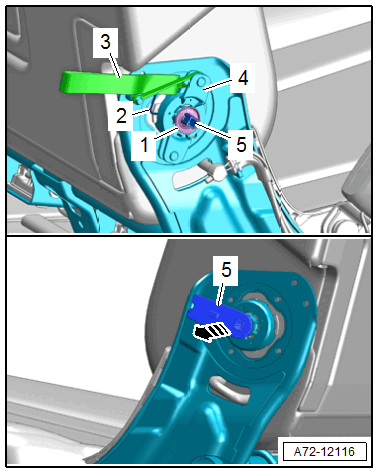

-- Destroy the lock washer -1- and remove it.
-- Label the installation position of the spiral spring -2-.
-- Disengage the pull loop -3- from the release handle -4-.
-- If necessary, deburr the backrest release shaft near the lock washer.
-- Slide the backrest release shaft -5- through to the opposite side -arrow-.
