Rear Seat Backrest Locking Mechanism, Removing And Installing, Center Second Row Seat: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Seat High: fold the outer seats forward.
-- Seat Low: remove the seat. Refer to SEAT LOW, REMOVING AND INSTALLING, CENTER SECOND ROW .
-- Remove the seat side trim. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .

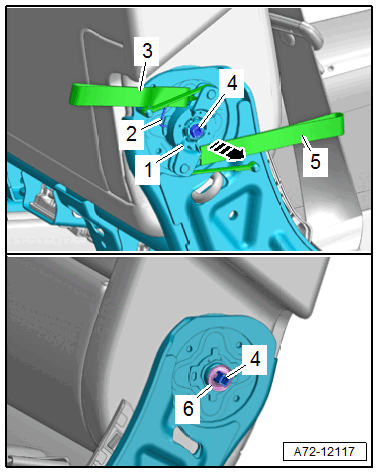

-- Destroy the lock washer -6- and remove it.
-- Label the installation position of the spiral spring -2-.
-- Disengage the pull loops -3 and 5-.
-- If necessary, deburr the backrest release shaft near the lock washer.
-- Slide the backrest release shaft -4- with the release lever -1- through to the opposite side -arrow-.
