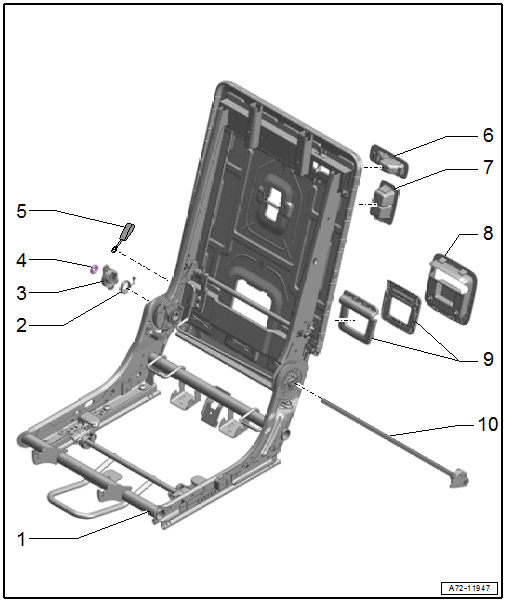

Overview - Rear Seat Backrest, Second Row Backrest Without Center Armrest

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Seat/Backrest Frame
- Cannot be separated
Spiral Spring
Release Lever
- For backrest
Lock Washer
- Replace after removing.
Pull Loop
- For the backrest release
- Removing and Installing. Refer to TUNNEL-SIDE SEAT SIDE TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Trim for Net Partition
- Equipped on some models
- Press on until it engages audibly.
- Removing and Installing. Refer to SCREEN SEPARATOR TRIM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
Cover
- For the upper child seat anchor
- Press into the seat frame until it engages audibly.
- Removing and Installing. Refer to UPPER CHILD SEAT ANCHOR COVER, REMOVING AND INSTALLING, SECOND AND THIRD ROW .
Trim
- for the seat folding release handle
- Equipped on some models
- Press on until it engages audibly.
- Removing and Installing. Refer to SEAT FOLDING RELEASE HANDLE, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Handle
- for seat folding release
- Equipped on some models
- Lock the inner and outer shell for the release handle carefully together
- Removing and Installing. Refer to SEAT FOLDING RELEASE HANDLE, REMOVING AND INSTALLING, SEAT HIGH, OUTER SECOND ROW .
Shaft
- for rear seat backrest locking mechanism
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
