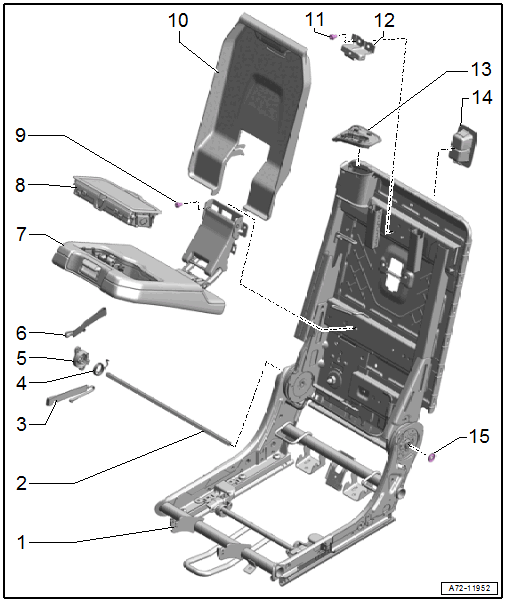

Overview - Rear Seat Backrest, Second Row Backrest With Center Armrest
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Seat/Backrest Frame
- Cannot be separated
- Shaft
- for rear seat backrest locking mechanism
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
- Pull Loop
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
- Spiral Spring
- Release Lever
- For backrest
- Pull Loop
- for rear seat backrest locking mechanism
- Removing and Installing. Refer to SEAT SIDE TRIM, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
- Center Armrest
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
- Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 6.5 Nm
- Trim
- For the center armrest
- Removing and Installing. Refer to CENTER ARMREST TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 6.5 Nm
- Stop
- For the center armrest
- Seat Belt Guide Inner Piece
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, CENTER SECOND ROW BACKREST .
- Cover
- For the upper child seat anchor
- Press into the seat frame until it engages audibly.
- Removing and Installing. Refer to UPPER CHILD SEAT ANCHOR COVER, REMOVING AND INSTALLING, SECOND AND THIRD ROW .
- Lock Washer
- Replace after removing.
