Overview - Headrest And Headrest Guide, Center Second Row Seat
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

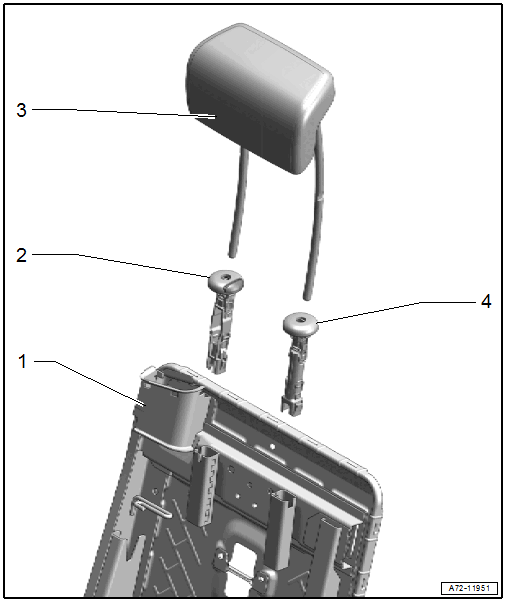

- Backrest Frame
- Headrest Guide
- With release button
- Installed on right side of backrest
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
- Headrest
- Cannot be disassembled
- Must be locked in the headrest guides
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
- Headrest Guide
- With locking spring
- Installed on left side of backrest
- Press until all three retainers are completely locked into the backrest frame
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
