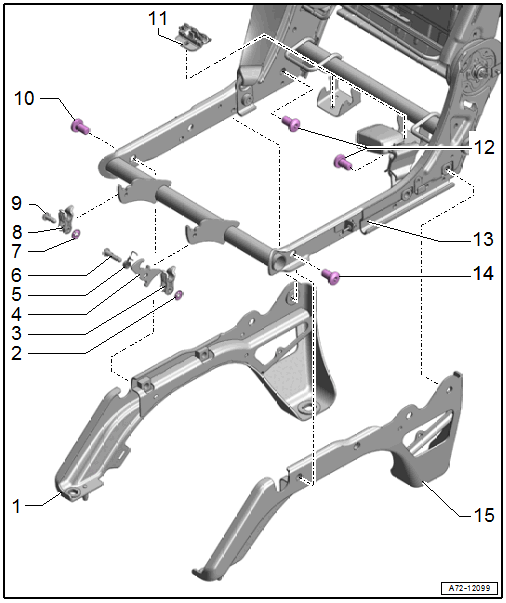

Overview - Bench Seat/Single Seats, Seat Frame Low, Center Second Row
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Right Stand Support
- Lock Washer
- Front Mount
- For seat/backrest frame
- Locking Mechanism
- For seat frame
- Spiral Spring
- Pin
- Lock Washer
- Front Mount
- For seat frame
- Pin
- Bolt
- Self-locking
- Replace after removing.
- 40 Nm
- Rear Mount
- For seat/backrest frame
- Quantity: 2
- Bolts
- Self-locking
- Replace after removing.
- 40 Nm
- Seat/Backrest Frame
- Bolt
- Self-locking
- Replace after removing.
- 40 Nm
- Left Stand Support
