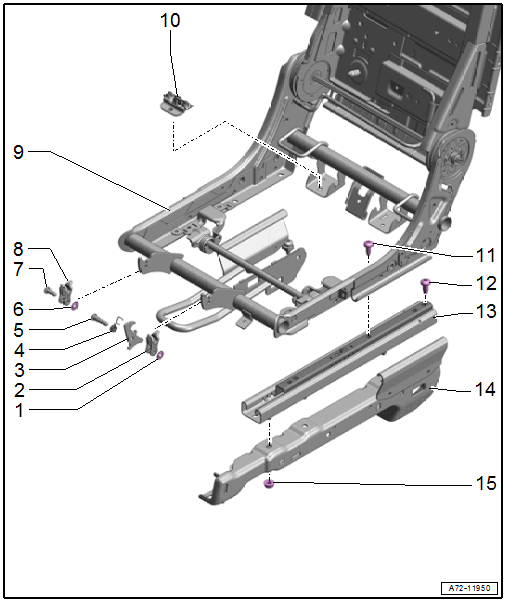

Overview - Bench Seat/Single Seats, Seat Frame High, Center Second Row
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Washer
- Front Mount
- For seat frame
- Locking Mechanism
- For seat frame
- Spiral Spring
- Pin
- Lock Washer
- Pin
- Front Mount
- For seat frame
- Seat/Backrest Frame
- Rear Mount
- For seat frame
- Quantity: 2
- Bolt
- Self-locking
- Replace after removing.
- 25 Nm
- Bolt
- Self-locking
- Replace after removing.
- 25 Nm
- Seat Rail
- Mount
- For the seat rail
- Nut
- Self-locking
- Replace after removing.
- 25 Nm
