Modular Wiring Routing, Disconnecting And Connecting

Individual Wire, Removing

-- Remove the seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Secure the seat on the :VAS6136  . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

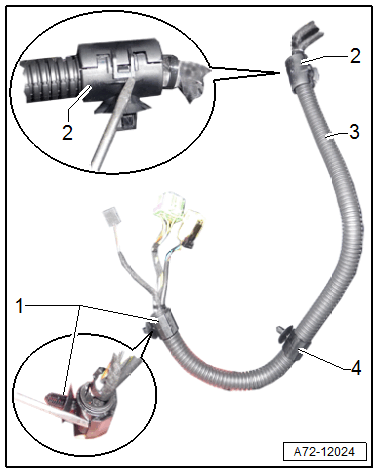

-- Open the front cable holder -1- using a screwdriver.

Courtesy of AUDI

-- Open the rear cable holder -2- for the wire routing on the seat pan using a screwdriver to release the hook -2-.

-- Remove the cable holder from the corrugated tube -3-.

-- Disconnect the halves of the corrugated tube.

-- Cut the cable tie if necessary to remove a single wire.

TIP:

To replace a defective wire the thorax airbag. Refer to REAR THORAX AIRBAG WIRE, REMOVING AND INSTALLING .

-- Cut through the cable tie and remove the individual wire.

Individual Wire, Installing

Install in reverse order of removal and note the following:

-- When bundling and placing individual wires, make sure the wires are not twisted.

• During installation, all cable ties, cable holders and clips must be installed at the same location.
• Make sure the connectors are pushed in all the way and that they engage audibly.
