Headrest Guide, Removing And Installing, Outer Second Row Seat: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING, OUTER SECOND ROW SEAT .
-- Remove the cover and cushion from the backrest frame. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, OUTER SECOND ROW BACKREST .

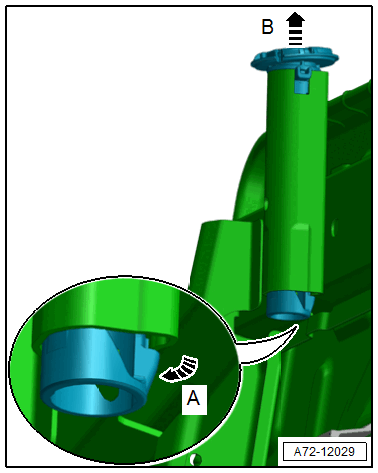

Headrest Guide with Release Button:
-- Press down the hook -arrow A- and remove the headrest guide upward -arrow B-.

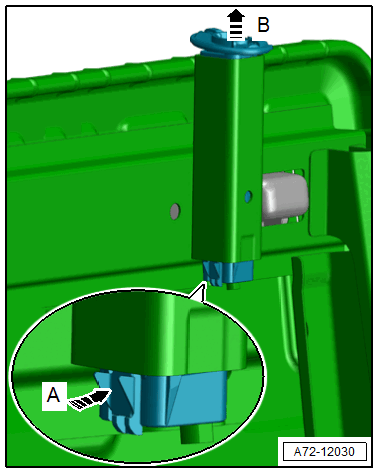

Headrest Guide with Locking Spring:
-- Press down the hook -arrow A- and remove the headrest guide upward -arrow B-.
