Headrest Guide, Removing And Installing, Center Second Row Seat: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING, CENTER SECOND ROW SEAT .
-- Versions without center armrest: remove the cushion from the backrest. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, OUTER SECOND ROW BACKREST .
-- Versions with center armrest: remove the center armrest trim. Refer to CENTER ARMREST TRIM, REMOVING AND INSTALLING .
Headrest Guide with Release Button:

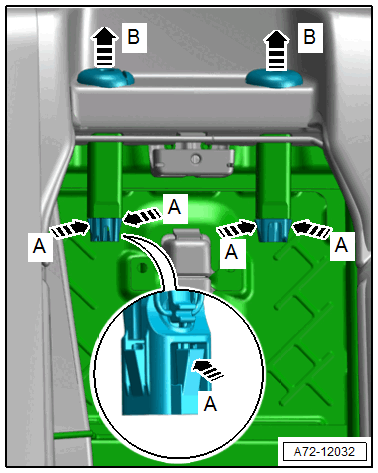

-- Press down the 3 hooks -A arrows- and remove the headrest guide upward -arrow B-.
Headrest Guide without Release Button:
-- Press down the 2 hooks -A arrows- and remove the headrest guide upward -arrow B-.
