Third Row Seat, Removing And Installing: Removing

-- Move the second row seats into the forwardmost position.

-- Fold the outer second row seats forward.

-- Remove the guide for the lower child seat anchor. Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, SECOND AND THIRD ROW .

-- Grasp with both hands on one side under the seat cushion frame.

Courtesy of AUDI

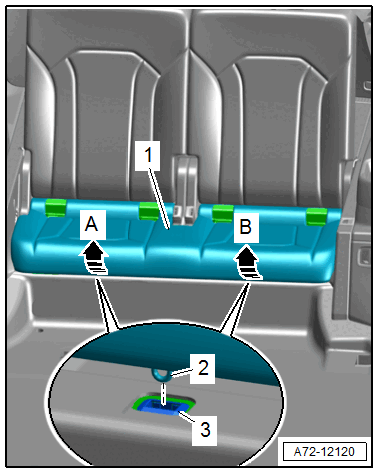

-- Pull the seat cushion -1- up forcefully with both hands -arrow A- so the wire hooks -2- on the seat cushion frame release from the mounting grommet -3-.

-- Repeat the procedure on the opposite side -arrow B-.

-- Disengage the seat cushion from the seat frame and remove from the vehicle.

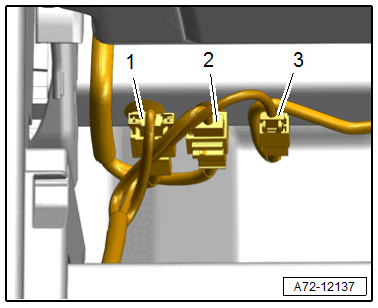

-- Disconnect the connectors -1, 2 and 3- by releasing the catch.

Courtesy of AUDI

-- Repeat this procedure on the opposite side.

-- Remove the luggage compartment floor bracket. Refer to LUGGAGE COMPARTMENT CARPET BRACKET, REMOVING AND INSTALLING .

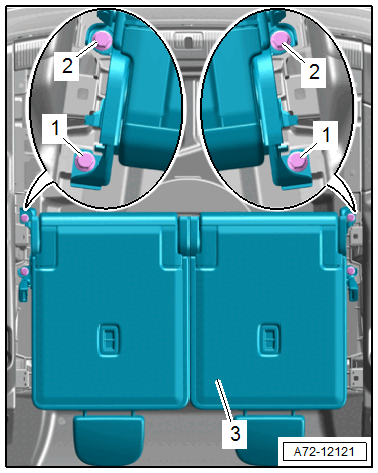

-- Remove the bolts -1 and 2-.

Courtesy of AUDI

TIP:

A second technician is required to remove the seat frame -3-.

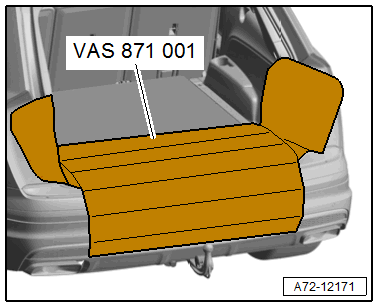

-- To protect the rear bumper before prying out the seat frame, install the :VAS871 001  as shown.

Courtesy of AUDI

-- With the help of a second technician, lift the seat frame out of the vehicle toward the rear through the lid opening.
