Seat High, Removing And Installing, Outer Second Row: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
- Backrest is folded forward and seat is folded forward.

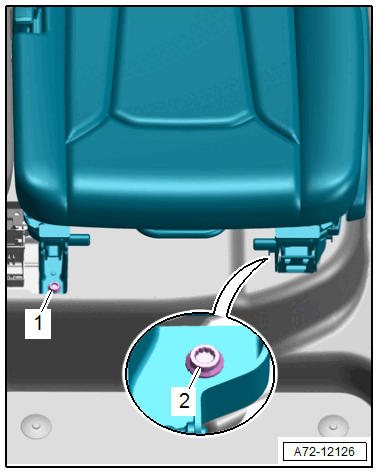

-- First tighten the bolts -1 and 2- by hand only.
-- Fold the seat backward and let it lock into place so that it aligns.
-- Slide the seat toward the rear and tighten the bolts.
- Make sure the connectors are pushed in all the way and that they engage audibly.
-- Remove the :VAS6282 and connect the connector to the connector station. Refer to AIRBAG ADAPTER, CONNECTING AND DISCONNECTING .
-- Connect the battery ground cable with the ignition switched on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- If the instrument cluster indicates a fault in the airbag system after assembly, the DTC memory must be checked, erased, and then checked again. Refer to Vehicle Diagnostic Tester.
