Seat Height Adjustment Handle, Removing And Installing: Removing

Courtesy of AUDI

-- Move the front seat all the way forward and up.

-- Remove the handle for the seat height adjustment to the side from the seat -arrow- using the :3409  .

TIP:

Courtesy of AUDI

If the handle cannot be removed, proceed as follows:

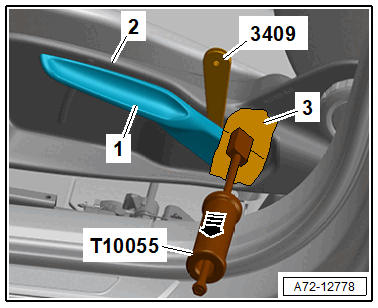

-- Slide the : 3409  between the handle -1- and the seat side trim -2-.

-- To protect the seat side trim, place a cloth -3- between the trim panel and :T10055  before positioning the tool.

-- Position the :T10055  as shown on the lever and remove the lever from the seat -arrow-.

-- To remove the adapter, remove the seat height adjuster -1-, and the seat frame trim panel on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Remove the adapter for the seat height adjuster -1-.
