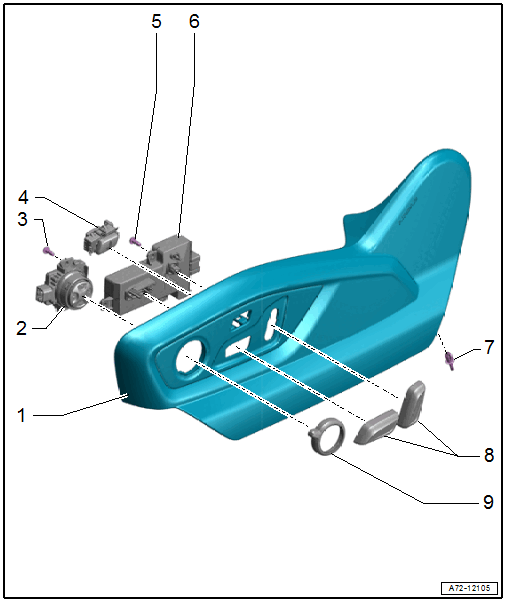

Overview - Controls For Power Seat Adjustment

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Seat Side Trim on Side Sill
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Lumbar Support Adjustment Switch or Front Seat Switch Module
- Removing and Installing. Refer to FRONT SEAT SWITCH/SWITCH MODULE, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 1.8 Nm
Driver Side Massage Function Button
- Press on until it engages audibly.
- Removing and Installing. Refer to DRIVER SIDE MASSAGE FUNCTION BUTTON -E670- / FRONT PASSENGER MASSAGE FUNCTION BUTTON -E671-, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 1.8 Nm
Driver Seat Adjustment Control Head
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
Expanding Clip
Actuator
- For seat and backrest adjuster
- Clipped on
- Press on until it engages audibly.
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
Rocker Switch
- for lumbar support adjustment switch
- Clipped on
- Removing and Installing. Refer to FRONT SEAT SWITCH/SWITCH MODULE, REMOVING AND INSTALLING .
