Front Seat Fan, Removing And Installing, Seat Cushion: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Secure the front seat to the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
CAUTION:
Risk of injury due to flying metal shavings.
Irritation and injury to skin and eyes possible.
- Wear protective eyewear.
- Wear safety gloves.
-- Carefully separate the pop rivets -arrows- using a mini grinder.
-- Remove the cover -1- for the fan.
-- Release and disconnect the connector -2-.

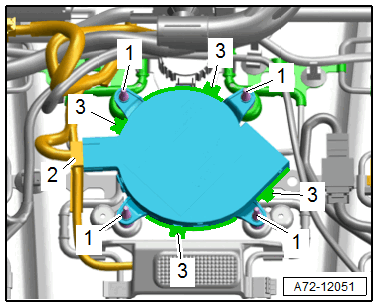

-- Spray the rubber fasteners -1- for the elastic fan bracket with silicone-free lubricating spray and remove the fan from the rubber fasteners.
-- Disengage the tabs -3- on the seat cushion fan and remove the fan.
