Driver/Front Passenger Seat Adjustment Control Head -E470- / -E471-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

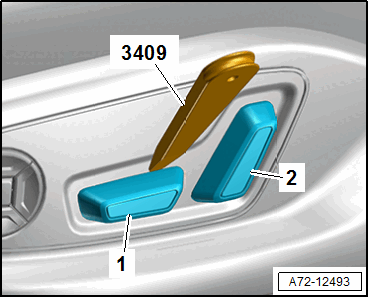

-- Pry out the seat adjustment actuators -1 and 2- from the retainers using the :3409 .
-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

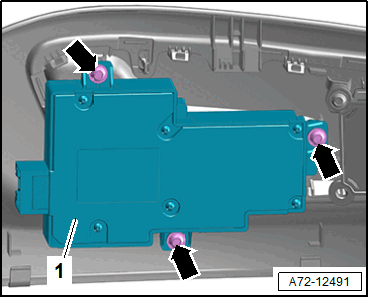

-- Remove the bolts -arrows-.
-- Remove the control head -1- from the seat side trim on the side sill side.
