Driver Side Massage Function Button -E670- / Front Passenger Massage Function Button -E671-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

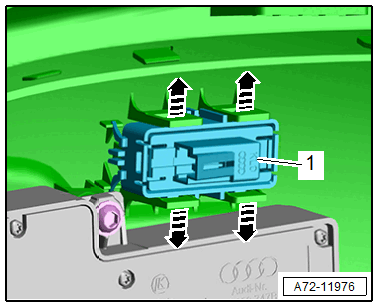

GWWA72-11976Courtesy of AUDI

-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

-- Press out massage function button -1- from the trim and remove it by releasing the retainers -arrows-.
