Backrest Fan, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- The backrest cover is removed. Refer to BACKREST COVER, REMOVING AND INSTALLING .

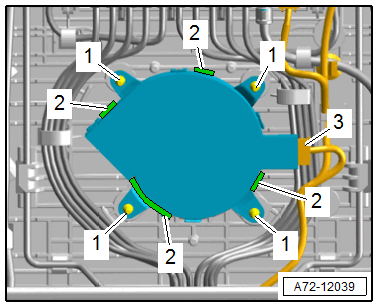

-- Release and disconnect the connector -3-.
-- Spray the rubber fasteners -1- for the elastic fan bracket with silicone-free lubricating spray and remove the fan from the rubber fasteners.
-- Disengage the tabs -2- on the backrest fan and remove the fan.
