Seat Bolster Inflation Adjuster Air Cushion, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the seat cushion with cover. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, SEAT WITH SEAT DEPTH ADJUSTER .
-- Disconnect the pneumatic lines -1- to the seat bolster inflation adjuster on the left and right side of the seat by carefully lifting the safety catch slightly using a small screwdriver -arrow-
-- Remove the bolts -3-.
-- Remove the expanding clip -2-.

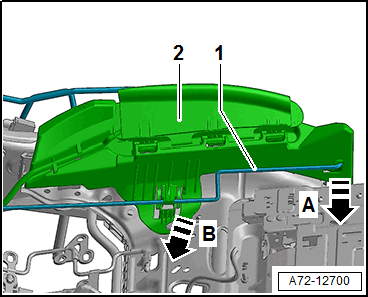

-- Disengage the upholstery wire -1- in the direction of -arrow A- and direction of -arrow B- from the seat bolster inflation adjuster bracket -2-.
-- Remove the seat bolster inflation adjuster bracket -2-.
