Massage Mat, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Separate the cover and cushion. Refer to BACKREST COVER AND CUSHION, SEPARATING .

Super Sport Seat:

Courtesy of AUDI

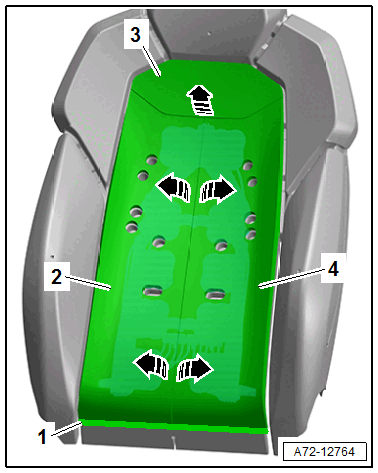

-- If necessary, loosen the bottom of the heating element -1- from the adhesive in the area of the center cushion.

-- Fold back or lift up the foam pieces -2, 3, and 4- with heating element -arrows-. Loosen from the adhesive if necessary.

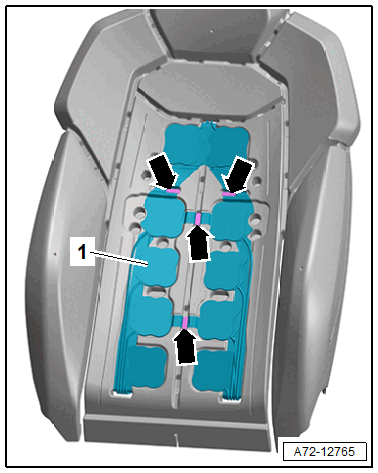

-- Remove the clips -arrows-.

Courtesy of AUDI

-- Thread the pneumatic lines and pneumatic connector at the top and bottom of the cushion.

-- Remove the massage mat -1-.

Comfort Seat:

Courtesy of AUDI

-- Fold back or lift up the foam sheets -1 and 5-. Loosen them from the bonding if necessary.

-- Remove the clips -3, 4 and 6-.

-- Remove the massage mat -2-.
