Oil Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- The transmission is removed. Refer to the appropriate Service Information .
-- Remove the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING, WITH LOWER TIMING CHAIN COVER INSTALLED .

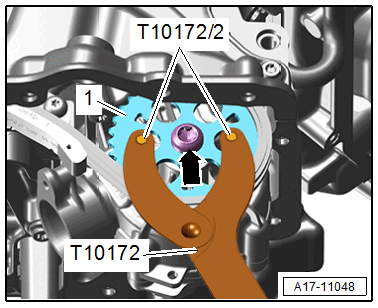

-- Position the : T10172A with : T10172/2 and remove the bolt -arrow-.
-- Remove the chain sprocket -1- from the oil pump and leave in the installation position.

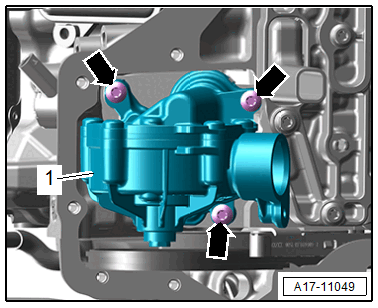

-- Remove the bolts -arrows- and oil pump -1-.
