Engine Oil Cooler, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

Replacing the seals after removal.

CAUTION:

Risk of contaminating the lubricating system and the bearing.

- Cover open engine components.

Fig 1: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of injuring the eyes from sealant residue.

- Wear protective eyewear.

-- Remove the sealant residue on the cylinder block and the engine oil cooler -1-, for example using a rotating plastic brush.

-- Clean any oil or grease off the sealing surfaces.

Be sure to check the expiration date of the sealant.

Fig 2: Cut Tube Nozzle At Front Marking
Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2.5 mm).

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk that the lubrication system could be blocked by excess sealant.

- Do not apply sealant bead thicker than indicated.

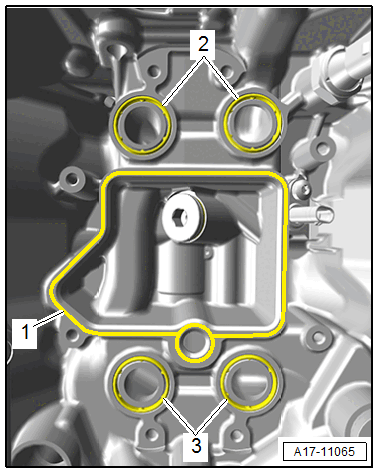

-- Insert the seals -2 and 3-.

-- Apply the sealant bead -1- to the clean sealing surface on the cylinder block.

Sealant bead thickness: 3.0 mm
Install the engine oil cooler within five minutes of applying the sealant.
Used coolant cannot be used again.

-- Position the engine oil cooler and tighten the bolts.

Further installation is performed in reverse order of removal, while noting the following:

-- Check the oil level. Refer to ENGINE OIL .

There are different procedures depending on the model. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
