Front Water Drain Hoses, Removing And Installing: Removing

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Remove the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .

-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .

Versions with Driver Assistance Systems Front Camera:

Courtesy of AUDI

-- To unclip the cover -arrows A, B and C-, insert the Angled Screwdriver:VAS 6416  carefully between the windshield and the cover.

-- Repeat the procedure on the opposite side.

-- Disengage the front of the cover -1- and remove it toward the rear.

Continuation:

-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the front roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- Remove the B-pillar upper trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Open the sun shade.

-- To avoid dirtying the headliner, clean the Removal Wedge:T40233  .

-- Push the Removal Wedge:T40233  between the sunroof frame -1- and the headliner.

Courtesy of AUDI

-- Using the Removal Wedge:T40233  , loosen the front of the headliner from the sunroof frame -arrows-.

-- Lower the headliner on the corresponding side.

-- Remove the water drain hose from the sliding sunroof and free it up at the clips and guides.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

Courtesy of AUDI

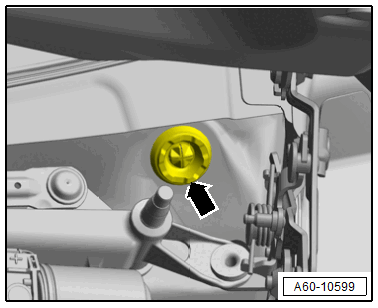

-- For guiding the new water drain hose in later, insert an approximately 500 mm long wire through the grommet -arrow- into the water drain hose.

-- Loosen the grommet on the plenum chamber and remove it from the water drain hose.

-- Remove the water drain hose toward the inside while holding the wire at the same time.
