Tilting Mechanism Guide Rail, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the sliding sunroof tilting mechanism. Refer to SLIDING SUNROOF TILTING MECHANISM, REMOVING AND INSTALLING .

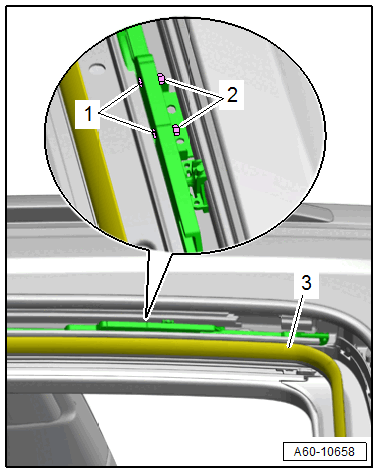

-- Remove the inner seal -3- from the sunroof frame near the retaining bracket.

Courtesy of AUDI

Depending on Version:

-- Loosen the threaded connection -1- using the 5 mm Socket by counterholding the nuts -2- with a 5 mm open end wrench.

TIP:

The nuts can also be counterheld using needle nose pliers.

-- Remove the nuts -2- using the 5 mm Socket.

Courtesy of AUDI

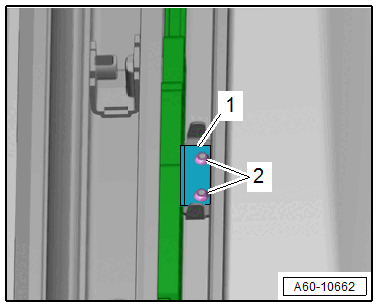

-- Remove the support bracket -1- upward.

Continuation:

Courtesy of AUDI

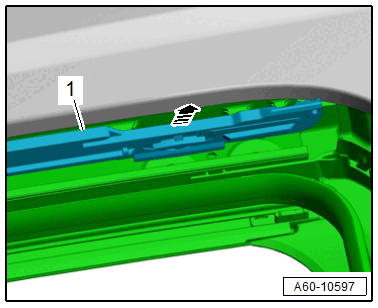

-- Tilt the tilting mechanism guide -1- out of the inner guide rail and remove it upward -arrow-.
