Tilting Mechanism Guide Rail, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Check if all gliding pieces -1- with springs -3- are on the tilting mechanism guide -2-.
- Unlike the gliding pieces -1- -A, C and D arrows-, there is no spring -2- installed on the gliding piece -1- -arrow B-.

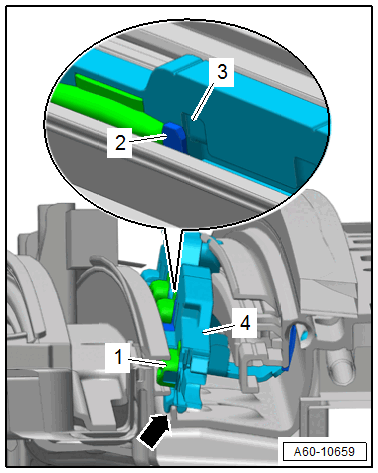

-- Insert the bottom of the tilting mechanism guide -4- into the mount for the guide rail -arrow-. While doing so, the arm -2- must engage in the opening -3-.
-- Press the entire length of the tilting mechanism guide into the inner guide rail. The sliding pieces -1- must slide into place at the same time.
