Sunroof Shade, Removing And Installing: Removing

-- Remove the rear glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .

-- Move the sunroof shade approximately 300 mm toward the front.

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

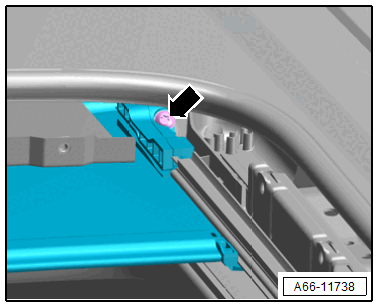

-- Remove the bolt -arrow-.

Courtesy of AUDI

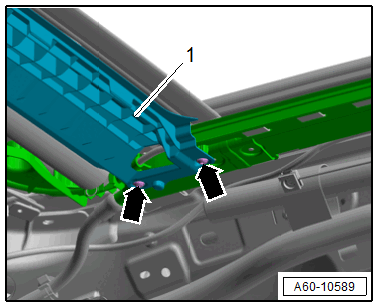

-- Remove the cross bar -1- to do so remove the left and right bolts -arrows-.

Courtesy of AUDI

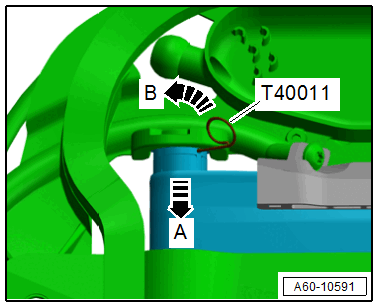

-- Push the sunroof shade slightly to the right -arrow A-, so that the left securing hole on the sunroof shade is free.

Courtesy of AUDI

-- Insert the Locking Pin (3 pc.):T40011  into the securing hole.

-- Press the sun shade arch -2- forward -arrow- and hold.

Courtesy of AUDI

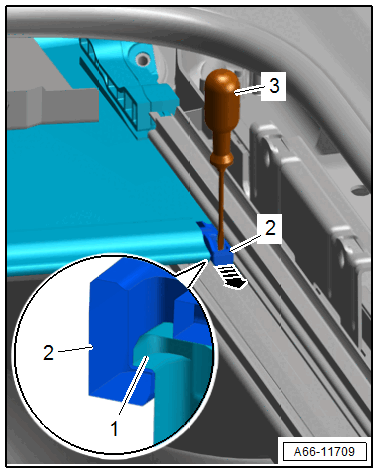

-- Using a screwdriver -3-, release the retainer -1- in the slide block -2- at the same time.

-- Turn the left sunroof shade bearing, until it can be removed downward from the guide on the sunroof frame.

-- Remove the sunroof shade toward the rear with all of the slide blocks out of the guide.

-- Remove the sunroof shade.
