Sunroof Shade, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

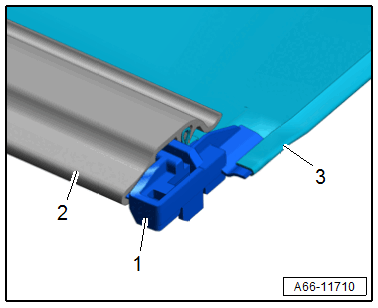

-- Insert the slide block -1- into the front sun shade arch -2- and on the sun shade material -3-.

Courtesy of AUDI

-- Tension the sunroof shade with the Locking Pin (3 pc.):T40011  still inserted in the securing hole a total of six turns -arrow-.

Fig 1: Tensioning Sunroof Shade

Courtesy of AUDI

TIP:

The sunroof shade mount only fits in one position in the sunroof frame.

-- Insert the sunroof shade in the pretensioned condition in the sunroof frame.

-- Perform an adaptation. Refer to Sunroof Shade Motor -V260-, ADAPTING .
