Sunroof Frame, Removing And Installing: Notes

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Gauge - Gap Adjustment:3371

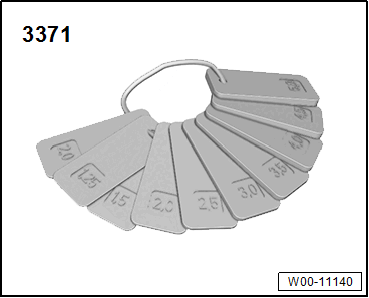

Fig 1: Gap Adjustment Gauge (3371)
Courtesy of AUDI

To complete the procedure, a second technician is required to be at the following position, refer to SUNROOF FRAME, REMOVING AND INSTALLING => Before removing the nuts, both technicians must hold the sunroof frame at the front and back. .

Removing

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

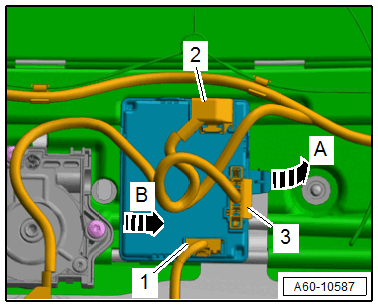

-- Disconnect the connector -1- from the Power Sunroof Control Module -J245-.

Courtesy of AUDI

-- Remove the front and rear water drain hoses from the sunroof frame. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .

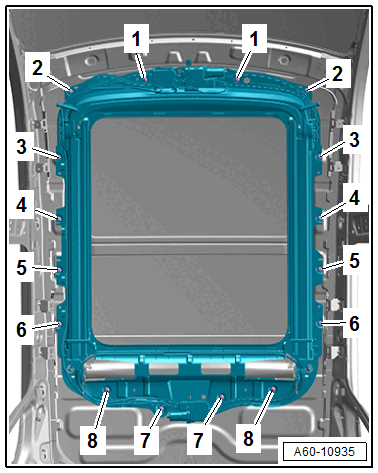

Fig 2: Sunroof Frame - Tightening Sequence

Courtesy of AUDI

CAUTION:

There is a risk of damaging the roof system if handled incorrectly.

- Only use the side guide rails to support the roof system.

Before removing the nuts, both technicians must hold the sunroof frame at the front and back.

-- Remove the nuts -1, 2, 4, 5, 7 and 8-.

-- Remove the nuts -3 and 6- and then remove the sunroof frame to the rear lid.

-- If the rear sunroof frame is to be replaced, also remove the following components:

Front glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, FRONT .
Rear glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .
Wind Deflector. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING .
Sunroof Control Module -J245-. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING .
Sunroof Motor -V1-. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING .
Sunroof Shade. Refer to SUNROOF SHADE, REMOVING AND INSTALLING .
Sunroof Shade Motor -V260-. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING .
