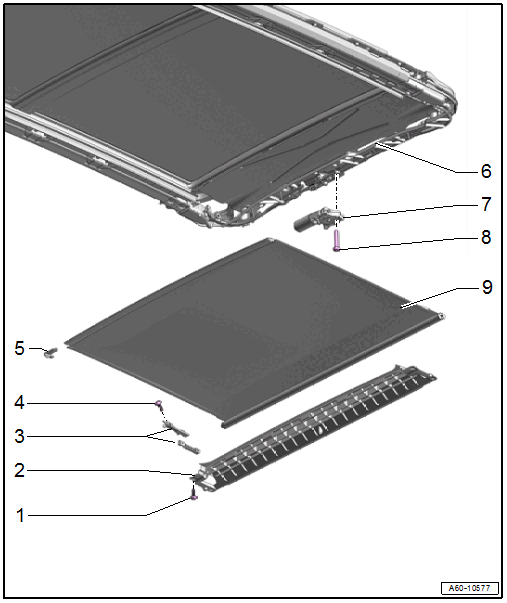

Overview - Sunroof Shade
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 2.5 Nm
- Cross Bar
- Guide
- For sunroof shade
- Bolt
- 1.5 Nm
- Gliding Piece
- Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Sunroof Shade Motor -V260-
- Removing and Installing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
- Bolt
- 3 Nm
- Sunroof Shade
- Removing and Installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
