Glass Panel, Removing And Installing, Rear: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the front glass panel.
-- Remove the rear trim -1- toward the front -arrows-.
-- Pull the inner seal -3- on the positions marked with the -arrows- slightly toward the inside and remove the left, right and rear bolts -2-.

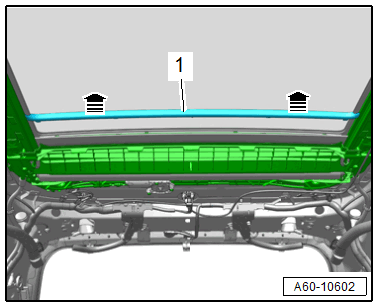

-- Remove the glass panel at the rear -1- upward from the mounting points.
-- Pull the rear side of the glass panel -2- forward -arrow-. The rain water drain channel -4- for the glass panel must be pulled over the raised section of the frame -1- and behind the roof frame -3- at the same time.
-- Lift out the rear glass panel upward.
