Glass Panel, Removing And Installing, Rear: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Remove any locking fluid residue from the threaded hole using a thread tap.

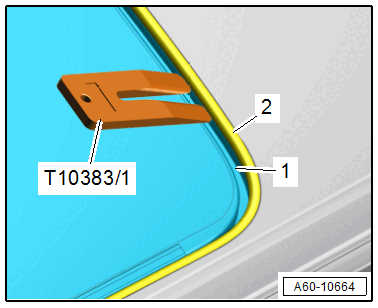

-- When inserting and sliding into the roof opening, the rain water drain channel -1- must be slid under the seal -2- using the Wedge Set - 1:T10383/1
-- Install the rear glass panel bolts, but do not tighten.
-- Adjust the rear glass panel (refer to GLASS PANEL, ADJUSTING ), then tighten the bolts.
-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
