Glass Panel, Removing And Installing, Front: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Moving the slotted guide rail guide increases the risk of damaging the sliding sunroof components.

- Move the slotted guide rail guide only when the glass panel is installed.

-- Open the glass panel just far enough until the trim is accessible.

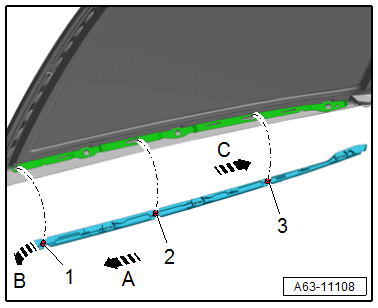

-- Remove the trim from the front edge and pull it all the way toward the rear -arrow A-.

Courtesy of AUDI

-- Pull the trim on the rear edge slightly toward the inside to disengage the locking bracket -1- -arrow B-.

-- Push the trim toward the front -arrow C- and disengage the locking pins -2 and 3-.

-- Remove the trim.

-- Remove the bolts -arrows- and remove the front glass panel -1-.

Fig 1: Removing Both Left And Right Front Screws On Glass Panel

Courtesy of AUDI
