Side Sill Seal, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- The vehicle and the seal must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Remove the adhesive residue from the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04 and let dry.

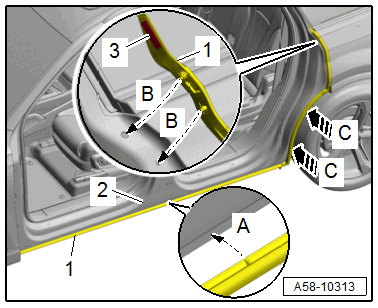

-- Attach the side sill seal -1- on the side sill -2- with the pins -arrow A-.
-- Push the side sill seal onto the side panel flange -C arrows-.
-- Remove the peel-off backing -3- from the tape.
-- Mount the side sill seal on the side panel with the pins -B arrows- and then bond.
