Overview - Door Seals

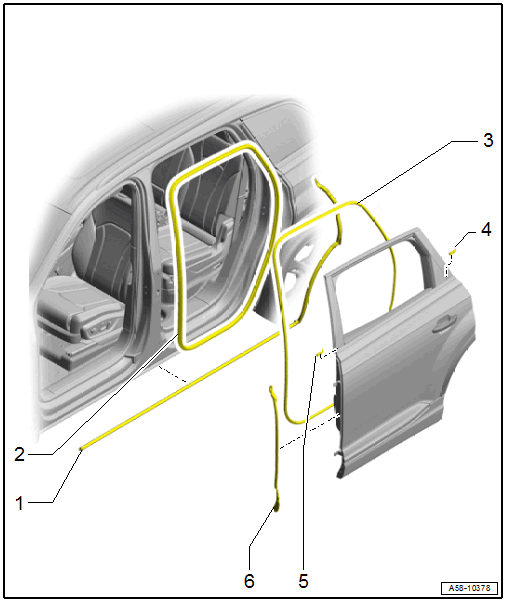

Fig 1: Exploded View Of Rear Door Seals

Courtesy of AUDI

1. Side Sill Seal
   • Replace after removing
   • Removing and Installing. Refer to SIDE SILL SEAL, REMOVING AND INSTALLING .
2. Inner Door Seal
   • Removing and Installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
3. Outer Door Seal
   • Replace after removing
   • Installation position. Refer to Fig 4.
   • Removing and Installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
4. C-Pillar Seal
   • Installation position. Refer to Fig 3.
5. B-Pillar Seal
   • Installation position. Refer to Fig 2.
6. Gap Seal
   • Removing and Installing. Refer to SEAM SEAL, REMOVING AND INSTALLING .

B-pillar seal installation position

Fig 2: B-Pillar Seal Installation Position

Courtesy of AUDI

• The vehicle and the seal must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Clean the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

-- Remove the protective film, put the seal in the installation position and apply it.

1. Seal
2. Inner Door Panel
3. Outer Door Panel

C-pillar seal installation position

Fig 3: C-Pillar Seal Installation Position

Courtesy of AUDI

-- Bring the seal into the installation position.

1. Seal
2. Outer Door Panel
3. Inner Door Panel

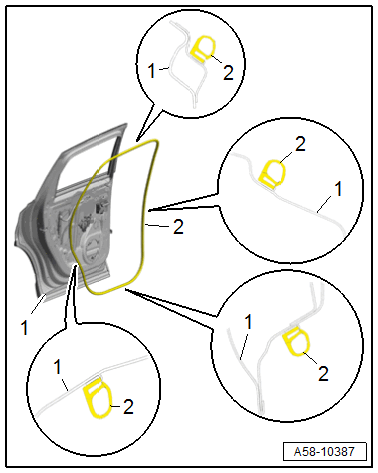

Outer door seal installation position

Fig 4: Outer Door Seal Installation Position

Courtesy of AUDI

1. Door Body
2. Seal
