Window Guide, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the window frame trim panel. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear door window. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .
-- Remove the C-pillar trim. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .

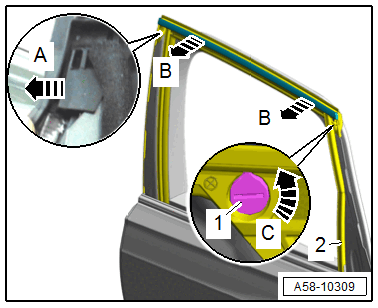

-- Remove the window guide -2- from the guide rail.
-- Turn the clip -1- 90° counter-clockwise -c arrow- and remove.
-- Starting at the rear remove from the window guide toward the rear from the door flange -B arrows- and toward the rear from the guide -arrow A-.
